Product Overview

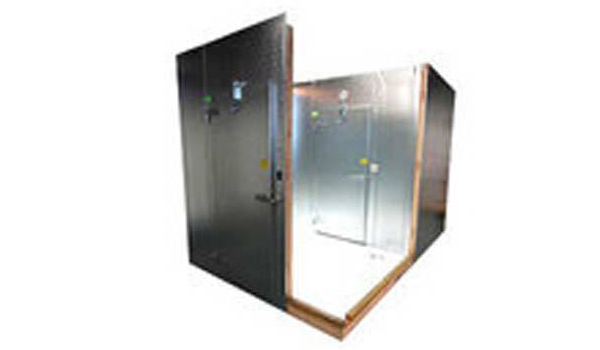

SHREE RAM ENGINEERS manufactures high-density Prefabricated PUF Panels engineered for world-class thermal insulation. Our panels are designed to create a “Thermal Envelope” that prevents heat transfer, significantly reducing the energy required to maintain sub-zero temperatures. Whether you are building a massive cold warehouse, a sterile pharmaceutical clean room, or a modular site office, our panels provide the perfect balance of strength, insulation, and ease of installation.

Technical Specifications

• Core Material: High-density, CFC-free Polyurethane Foam (PUF) with a density of 40 ± 2 kg/m³.

• Skin Material: Available in Pre-Painted Galvanized Steel (PPGS), Stainless Steel (SS 304/316), or Aluminum, depending on hygiene and corrosion requirements.



• Thickness Range: 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, and 150mm to suit various temperature differentials.

• Joint System: Advanced Tongue-and-Groove with integrated Cam-Lock mechanisms for a 100% airtight, hermetic seal.



• Fire Rating: Available in Fire Retardant (B2/B3 grade) variants for enhanced industrial safety.

Key Benefits

• Maximum Energy Savings: Low K-factor (thermal conductivity) ensures minimal heat ingress, lowering your monthly electricity bills.



• Modular & Scalable: Panels are factory-finished and ready for on-site assembly, allowing for rapid construction and easy future expansion or relocation.



• Hygiene & Food Safety: Smooth, non-porous surfaces prevent the growth of mold, bacteria, and pests—meeting FSSAI, FDA, and GMP standards.

• High Structural Strength: High strength-to-weight ratio allows for large-span ceilings and sturdy walls without heavy external support.



• Weather & Corrosion Resistant: Designed to withstand harsh outdoor environments and high-moisture indoor conditions.
